Plastic square bends are used for supply and exhaust vents of public, residential and industrial ventilation systems. The bends are made of white plastic.
Square bends 45 vertical
| Combination name | Code | EAN | Availability | Price VAT excl. | Preis VAT incl. | Add to cart |
|---|---|---|---|---|---|---|
APPLICATION
The plastic bends are used for supply and exhaust ventilation of various premises.
DESIGN
The bends are made of white plastic.
MODIFICATION
Plastic vertical 45° bends for square ducts: 705, 575, 975, 6011, 3011| code: | 575 | 975 |  |
| dimensions (mm): | 204x60 | 220x90 |
| code: | 6011 | 3011 |  |
| dimensions (mm): | 234x29 | 308x29 |
| Model | Dimensions (mm) | |||||
|---|---|---|---|---|---|---|
| a | b | c | d | Weight (kg) | Downloads | |
| 575 | 60x204 | 64 | 27 | 89 | 0,089 | Detail  |

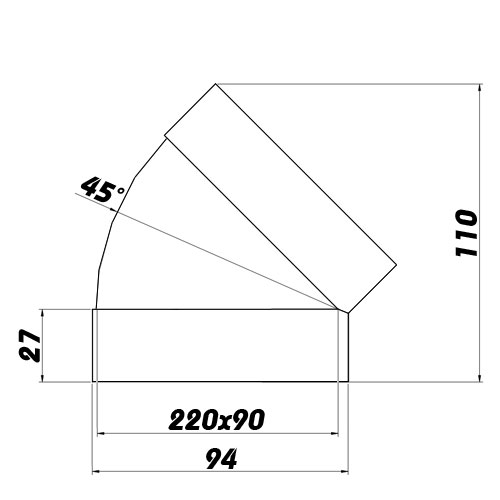

| 975 | 90x220 | 94 | 27 | 110 | 0,151 | Detail  |

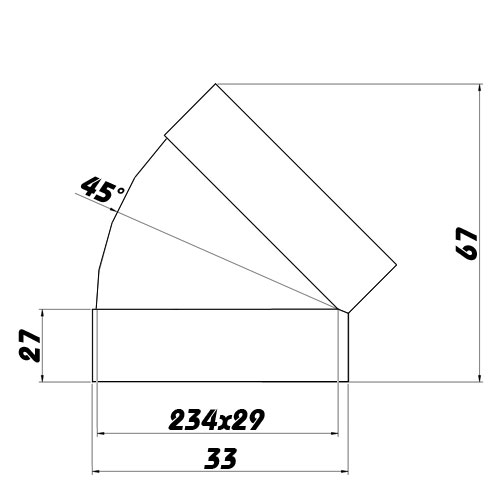

| 6011 | 29x234 | 33 | 27 | 67 | 0,104 | Detail |
| 3011 | 29x308 | 33 | 27 | 68 | 0,135 | Detail  |
Plastic square bends are used for supply and exhaust vents of public, residential and industrial ventilation systems. The bends are made of white plastic.
