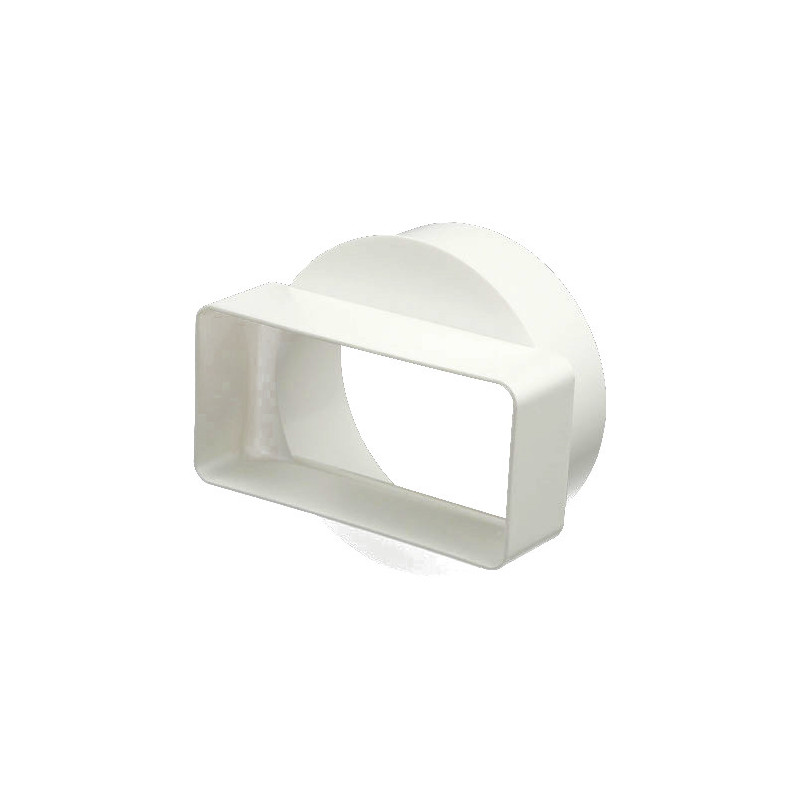

Plastic round reductions are used for supply and exhaust vents of public, residential and industrial ventilation systems. The reductions are made of white plastic.
Round/square reductions horizontal
| Combination name | Code | EAN | Availability | Price VAT excl. | Preis VAT incl. | Add to cart |
|---|---|---|---|---|---|---|
APPLICATION
The plastic reductions are used for supply and exhaust ventilation of various premises.
DESIGN
The reductions are made of white plastic.
MODIFICATION
Plastic reduction for square and round ducts: 666
 |
|
| code: | 666 |
| dimensions (mm): | 100/110x55 |
| Model | Dimensions (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| D | D1 | L | a | a1 | b | b1 | Weight (kg) | Downloads | |
| 666 | 100 | 96 | 110 | 106 | 52 | 55 | 64 | 0,047 | Detail  |
| Model | Voltage (V) at 50 Hz | Power consumption (W) | Current (A) | r.p.m. | Maximum air capacity (m3/h) | Sound pressure level at 3m (dB(A)) | Weight (kg) | Graphs |
|---|---|---|---|---|---|---|---|---|
| 100 BF | 230 | 16 | 0,1 | 2300 | 115 | 36 | 0,68 | Detail  |
| 125 BF | 230 | 24 | 0,105 | 2400 | 209 | 36 | 0,84 | Detail  |
| 150 BF | 230 | 30 | 0,13 | 2400 | 310 | 39 | 1,1 | Detail  |
| 100 BF 12V | 12 | 14 | 1,5 | 2200 | 77 | 32 | 0,59 | Detail  |
| 125 BF 12V | 12 | 16 | 1,7 | 2300 | 149 | 33 | 0,72 | Detail  |
| 150 BF 12V | 12 | 24 | 2 | 2300 | 236 | 36 | 0,92 | Detail  |
| 100 BF ECO | 230 | 5,5 | 0,035 | 1835 | 60 | 25 | 0,68 | |
| 125 BF ECO | 230 | 9,3 | 0,06 | 1830 | 108 | 31 | 0,84 | |
| 150 BF ECO | 230 | 20 | 0,14 | 1950 | 220 | 35 | 1,1 |
