Round/square reductions 90°

Plastic round reductions are used for supply and exhaust vents of public, residential and industrial ventilation systems. The reductions are made of white plastic.
Combination name Code EAN Availability Price VAT excl. Preis VAT incl. Add to cart
Dalap 521 (90° 100/110x55) 521 4250622609631 30+ pcs. 2.18 € 2.59 €
shopping_cart
Dalap 821 (90° 100/204x60) 821 4250622609808 30+ pcs. 4.33 € 5.15 €
shopping_cart
Dalap 822 (90° 125/204x60) 822 4250622609815 30+ pcs. 4.56 € 5.43 €
shopping_cart
Dalap 823 (90° 150/204x60) 823 4250622609822 30+ pcs. 4.69 € 5.58 €
shopping_cart
Dalap 3013 (90° 100/308x29) 3013 4250622601765 30+ pcs. 6.61 € 7.87 €
shopping_cart
Dalap 6013 (90° 125/204x60) 6013 4250622601253 30+ pcs. 5.58 € 6.64 €
shopping_cart
Dalap 983 (90°; 125/220×90) 983 4250622614925 30+ pcs. 8.02 € 9.54 €
shopping_cart
Dalap 984 (90°; 150/220×90) 984 4250622634930 2021-05-05 8.32 € 9.90 €
shopping_cart

APPLICATION

The plastic reductions are used for supply and exhaust ventilation of various premises.


DESIGN

The reductions are made of white plastic.


MODIFICATION

Plastic reduction for square and round ducts: 521, 821, 822, 823, 983, 984, 3013, 6013

PVC reduction PVC reduction PVC reduction PVC reduction PVC reduction PVC reduction PVC reduction PVC reduction
code 521 821 822 823 983 984 3013 6013
dimensions (mm) 100/110×55 100/204×60 125/204×60 150/204×60 125/220×90 150/220×90 100/308×29 125/204×60


CUSTOMS CODE: 39174000

BEND__at

AT_Konfortmitaetserklaerung

BEND__cz

CZ_Prohlášení o shodě

BEND__de

DE_Konfortmitaetserklaerung

BEND__en

EN_Declaration of conformity

BEND__hu

HU_Megfelöségi nyilatkozat

BEND__pl

PL_Deklaracja zgodności

BEND__ro

RO_Declarație de conformitate

BEND__sk

SK_Vyhlásenie o zhode

ModelDimensions (mm)
ØDØD1La×bc×dHWeight (kg)Downloads
Dalap 521 100 98 136 110x55 113x58 77 0,097 Detail
Dalap 821 100 98 146 204x60 208x64 85 0,235 Detail
Dalap 822 125 123 170 204x60 208x64 85 0,296 Detail
Dalap 823 150 148 250 204x60 208x64 92 0,259 Detail

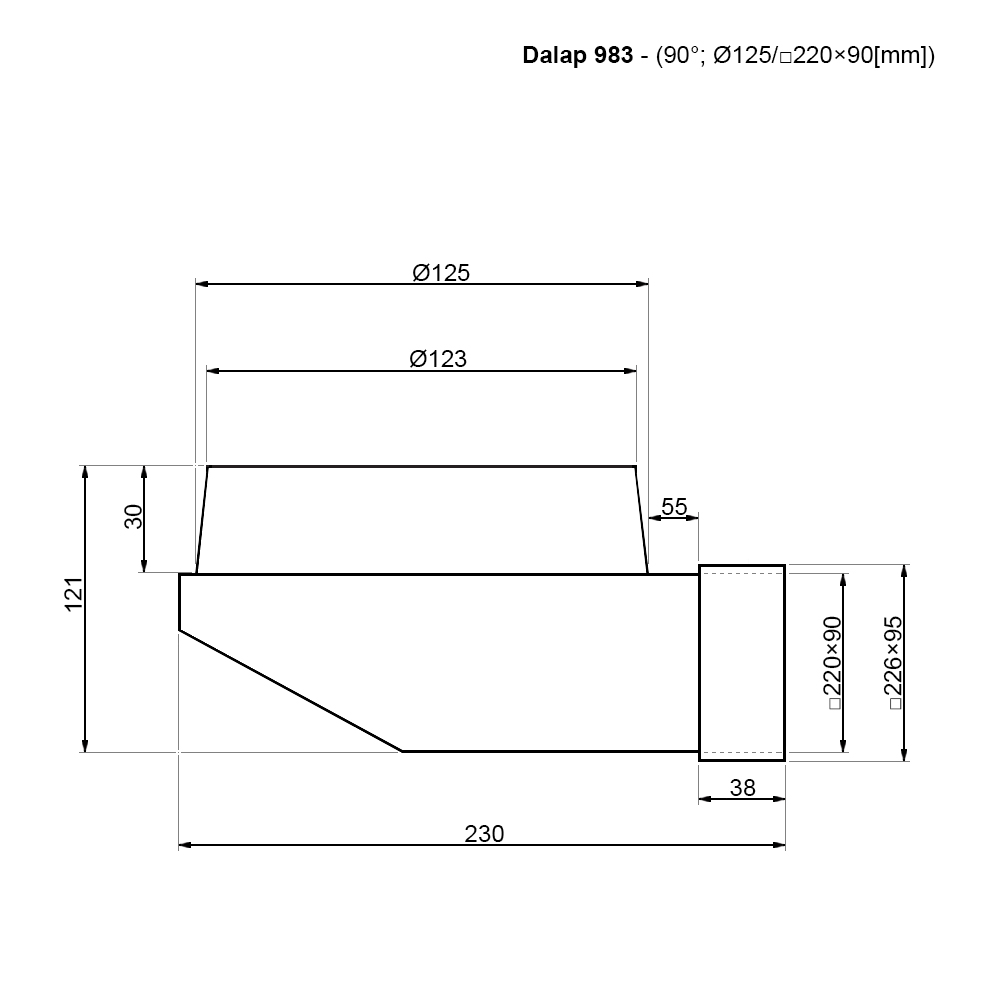

Dalap 983 125 123 230 220×90 226×95 121 0,287 Detail
Dalap 984 150 148 230 220×90 226×95 121 0,275 Detail
Dalap 3013 103 100 135 308x29 312x33 50 0,210 Detail
Dalap 6013 103 100 135 234x29 238x33 50 0,171 Detail
