TVM - Disc valves

TVM-P
  • TVM-O
  • TVM-P

Supply and exhaust ventilation, heating and air conditioning networks in industrial, commercial and domestic premises. Disc valves are used for regulation and correction of air circulation in premises.

Combination name Code EAN Availability Price VAT excl. Preis VAT incl. Add to cart
Dalap TVM 100 O 93215 4250622601895 30+ pcs. 4.20 € 5.00 €
shopping_cart
Dalap TVM 125 O 99421 4250622601901 30+ pcs. 4.87 € 5.80 €
shopping_cart
Dalap TVM 150 O 99422 4250622601918 30+ pcs. 6.64 € 7.90 €
shopping_cart
Dalap TVM 160 O 93551 4250622646315 30+ pcs. 6.89 € 8.20 €
shopping_cart
Dalap TVM 200 O 99423 4250622601925 30+ pcs. 8.66 € 10.30 €
shopping_cart
Dalap TVM 250 O 994251 4250622603530 2023-06-15 19.37 € 23.05 €
shopping_cart
Dalap TVM 100 P 93216 4250622601932 30+ pcs. 4.20 € 5.00 €
shopping_cart
Dalap TVM 125 P 93217 4250622601949 30+ pcs. 4.87 € 5.80 €
shopping_cart
Dalap TVM 150 P 93218 4250622601956 30+ pcs. 6.64 € 7.90 €
shopping_cart
Dalap TVM 160 P 93550 4250622646308 2023-06-30 6.89 € 8.20 €
shopping_cart
Dalap TVM 200 P 93219 4250622601963 10+ pcs. 9.08 € 10.80 €
shopping_cart

APPLICATION

For supply and exhaust ventilation in public, residential and industrial ventilation systems.  Mounting is to wall, ceiling and with direct connection to ducts with diameter 100, 125, 150, 160, 200 or 250 mm. Disc valves have a rubber seal for tight contact and fixing lugs. TVM O - supply  and TVM P exhaust component.

DESIGN

Made of white polymer coated steel. Special aerodynamic shape enables uniform air distribution. Smooth air flow control due to the central valve rotation. Easy mounting directly to ducts and fixed with screws.

MODIFICATION

TVM-O designed for fresh air supply
TVM-P designed for exhaust air
CUSTOMS CODE: 73269098

TVM_O/P_CZ

CZ_Prohlášení o shodě

TVM_O/P_SK

SK_Vyhlásenie o zhode

TVM_O/P_EN

EN_Declaration of conformity

TVM_O/P_PL

PL_Deklaracja zgodności

TVM O/P_DE

DE_Konformitaetserklaerung

TVM O/P_HU

HU_Megfelöségi nyilatkozat

TVM O/P_RO

RO_Declarație de conformitate

ModelDimensions (mm)
∅D∅D1LL1Weight (kg)Downloads

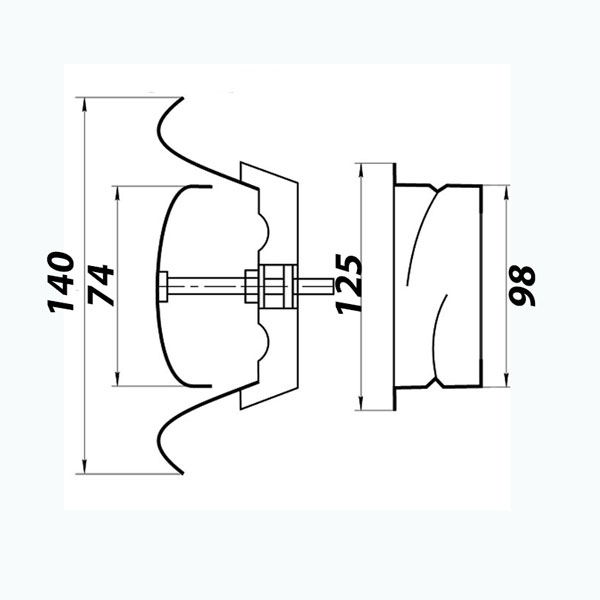

TVM 100 O 98 125 74 140 0,231  Detail

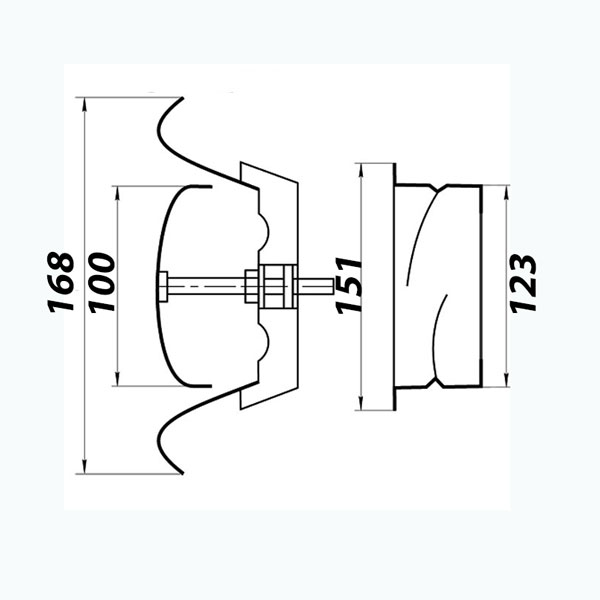

TVM 125 O 123 151 100 168 0,312  Detail

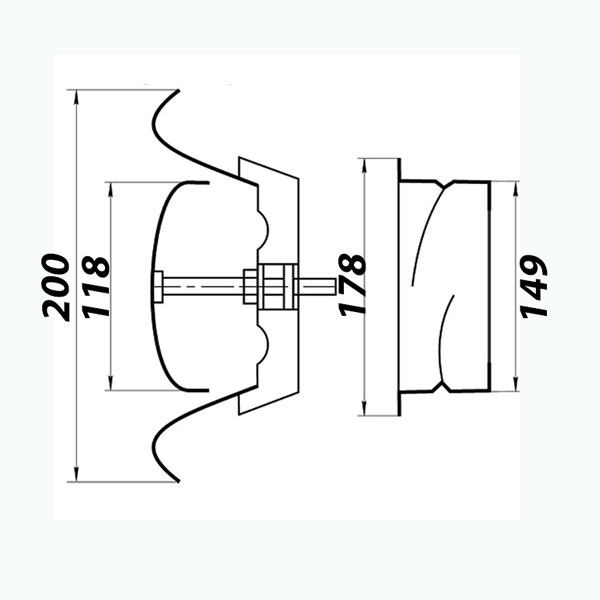

TVM 150 O 149 178 118 200 0,421  Detail

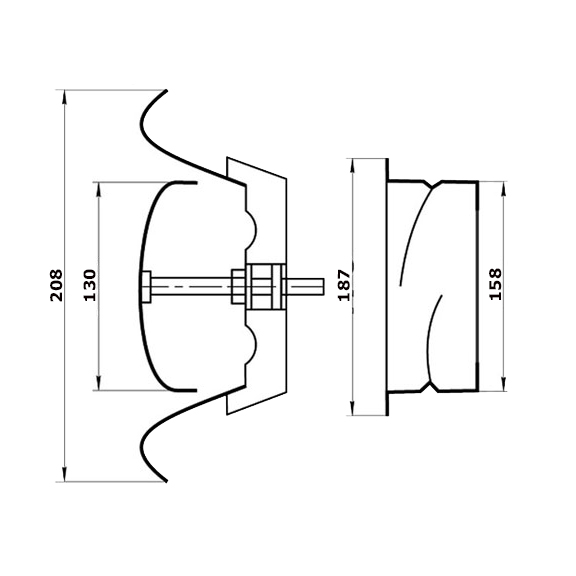

TVM 160 O 158 187 130 208 0,452  Detail

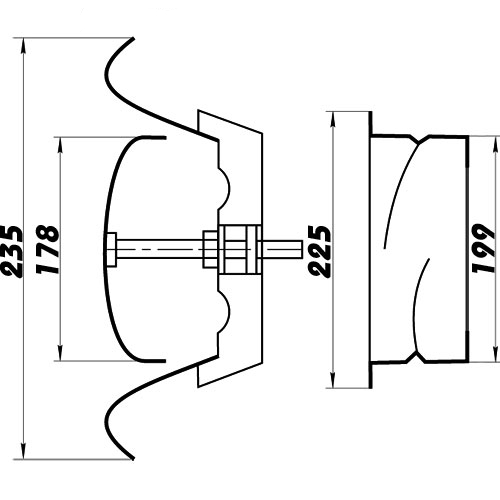

TVM 200 O 199 225 178 235 0,614  Detail

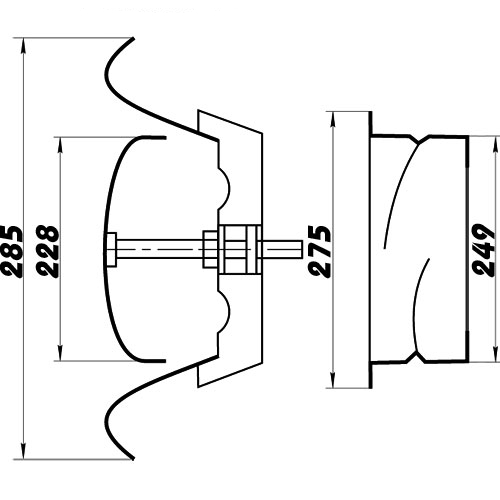

TVM 250 O 249 275 228 285 0,932  Detail
TVM 100 P 99 124 94 140 0,226  Detail
TVM 125 P 124 149 115 168 0,309  Detail
TVM 150 P 149 177 138 200 0,464  Detail

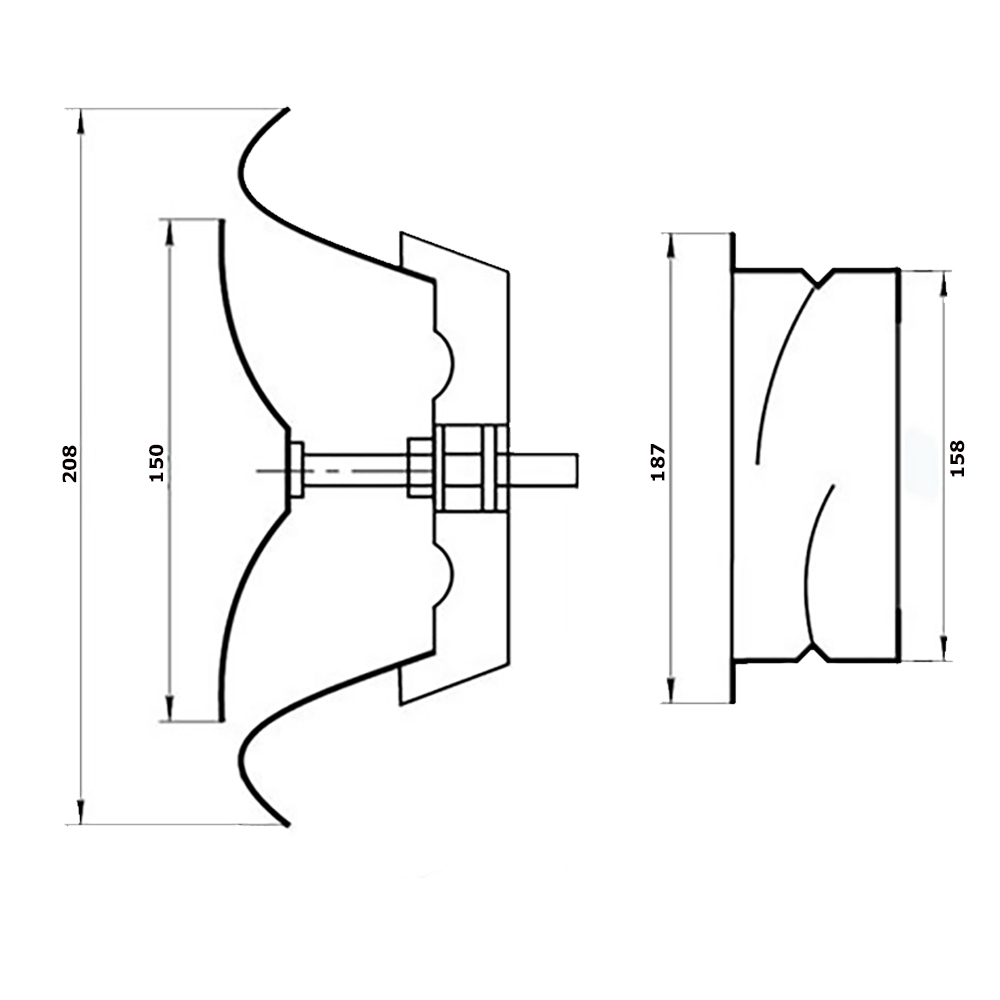

TVM 160 P 158 187 150 208 0,503  Detail

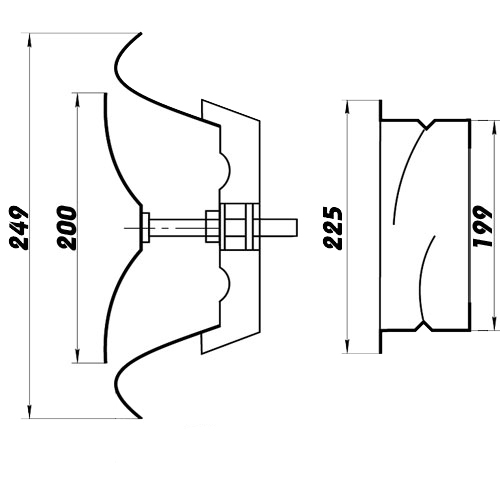

TVM 200 P 199 225 200 249 0,628  Detail
