Dalap AP DR - axial duct fan with speed controller

  • New
Dalap AP DR duct fan in black equipped with an AC motor with continuous speed control directly installed on the power cable. Thanks to its high performance, it ensures effective air ventilation in most residential and commercial spaces. The fan is equipped with a base for easy wall or ceiling mounting.
Combination name Code EAN Availability Price VAT excl. Preis VAT incl. Add to cart
Dalap AP 100 DR 25APDR10 4250622655218 30+ pcs. 58.40 € 69.50 €
shopping_cart
Dalap AP 125 DR 25APDR12 4250622655225 30+ pcs. 60.76 € 72.30 €
shopping_cart
Dalap AP 150 DR 25APDR15 4250622655232 30+ pcs. 70.25 € 83.60 €
shopping_cart
Dalap AP 200 DR 25APDR20 4250622655249 30+ pcs. 82.44 € 98.10 €
shopping_cart

The Dalap AP DR plastic axial duct fan in black is equipped with an AC motor with continuous speed control directly installed on the mains cable, thanks to which the power can be easily adjusted to the current need. High air flow and static pressure ensure effective air ventilation in most residential and commercial spaces. The fan is equipped with a base for easy wall or ceiling mounting. In combination with black accessories, it creates a uniform installation.

Advantages of the Dalap AP 100 DR axial duct fan

- AC motor with stepless speed control
- high air flow up to 322 m3 /hour
- high static pressure up to 160 Pa
- IP44 protection
- power cable (160 cm) with 230 V socket plug
- mounting plate for wall or ceiling anchoring
- high-quality plastic construction with high durability
- Black design for a complete look with black accessories
- compatibility with Dalap round ducts

AP_DR_en

Manual

AP_DR_en

Declaration of conformity

ModelDimensions (mm)
Downloads
Dalap AP 100 DR Detail

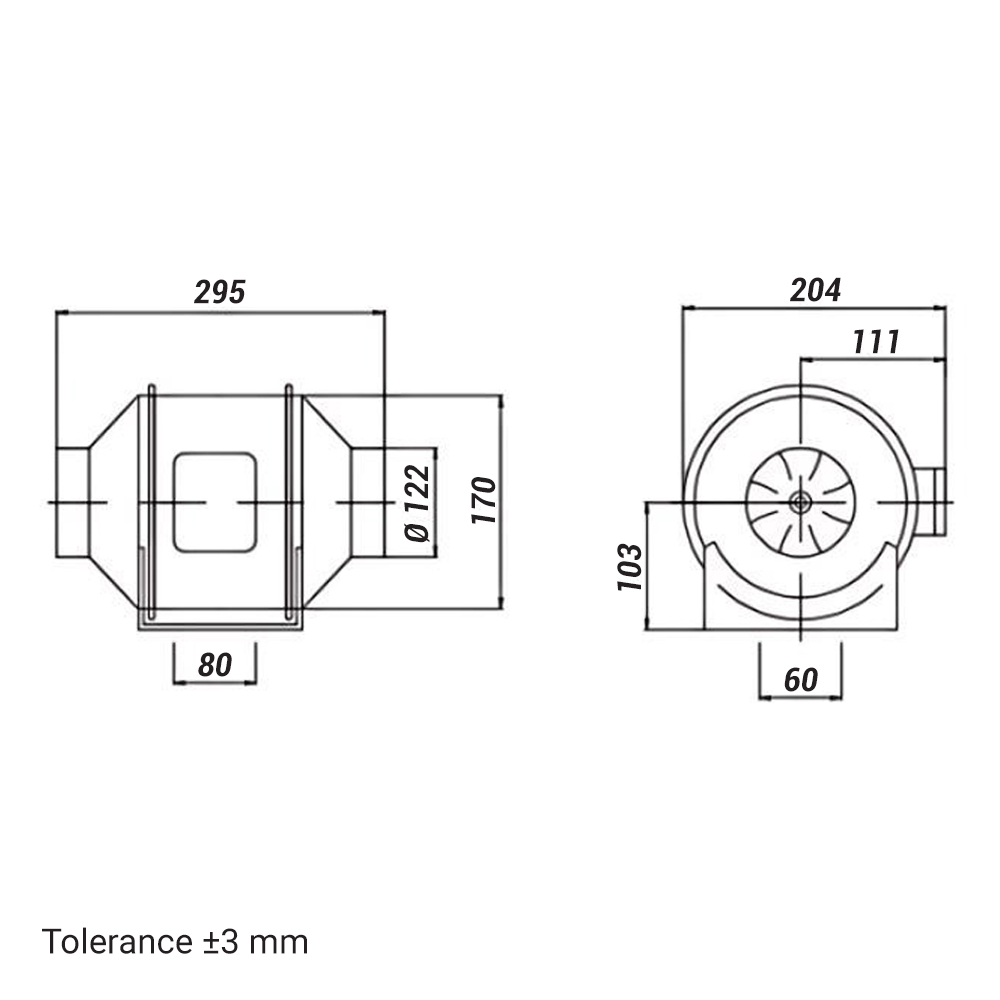

Dalap AP 125 DR Detail
Dalap AP 150 DR Detail

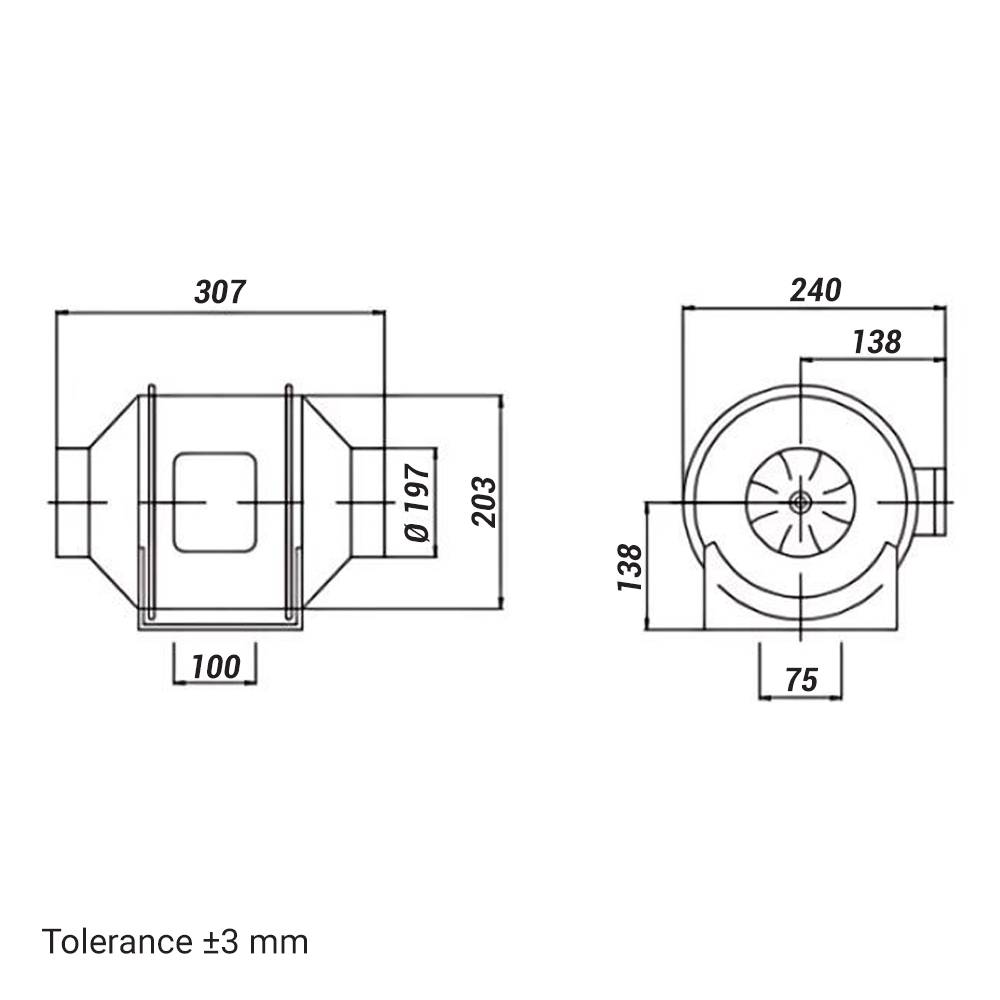

Dalap AP 200 DR Detail
Model

Voltage (V)
at 50 Hz		Power
consumption (W)		Current (A)

r.p.m.

Maximum air
capacity (m3/h)		Sound pressure
level at 3m (dB(A))		Weight (kg)

Static pressure (Pa)
AP 100 DR 230 55 0,42 2350 322 30 2,3 160
AP 125 DR 230 55 0,42 2350 328 32 2,4 165
AP 150 DR 230 50 0,22 2400 660 33 2,5 350
AP 200 DR 230 132 0,61 2310 900 40 2,65 380
