Dalap PMI-O - stainless steel internal coupling with sealing rubber for ducting

The Dalap PMI-O stainless steel internal coupling with sealing rubber for ducting is designed for connecting ducts in small and medium-sized spaces, such as kitchens, bathrooms, washrooms, fitness centers or offices. This duct system is suitable for outdoor and high-humidity environments due to its durability and long service life (AISI 304). Thanks to the SPIRO COMFORTCLICK system, it is easy to connect and is compatible with Dalap SPIROVENT and Dalap SPIROVENTI.
Combination name Code EAN Availability Price VAT excl. Preis VAT incl. Add to cart
Dalap PMI-O 080 80174I 4250622654884 10+ pcs. 6.64 € 7.90 €
shopping_cart
Dalap PMI-O 100 80110I 4250622654822 10+ pcs. 7.61 € 9.06 €
shopping_cart
Dalap PMI-O 125 80111I 4250622654839 1 pc. 7.61 € 9.06 €
shopping_cart
Dalap PMI-O 150 80112I 4250622654846 1 pc. 8.07 € 9.60 €
shopping_cart
Dalap PMI-O 160 80113I 4250622654853 8 pcs. 9.03 € 10.75 €
shopping_cart
Dalap PMI-O 200 80114I 4250622654860 2025-12-23 9.96 € 11.85 €
shopping_cart

The Dalap PMI-O stainless steel internal coupling and sealing rubber is used to connect air ducts in small and medium-sized spaces, such as kitchens, bathrooms, washrooms, fitness centers or offices. This duct system is suitable for outdoor use and high humidity environments due to its durability and long service life (AISI 304). This metal coupling has the innovative SPIRO COMFORTCLICK system. The coupling can be combined with both stainless steel and conventional metal spiro ducts.

Advantages of the Dalap PMI-O stainless steel internal coupling with sealing rubber

  • stainless steel 1.4301 (AISI 304) for high resistance and long service life
  • also suitable for outdoor environments and environments with high humidity
  • temperature resistance from -30 to +80 °C , without seal up to +350 °C
  • SPIRO COMFORTCLICK - flanges equipped with sealing rubber ensure easy installation (you just need to insert the components into each other)
  • easy maintenance and cleaning
  • compatible with ducts and components of the same diameter

PMI-O_en

Declaration of conformity

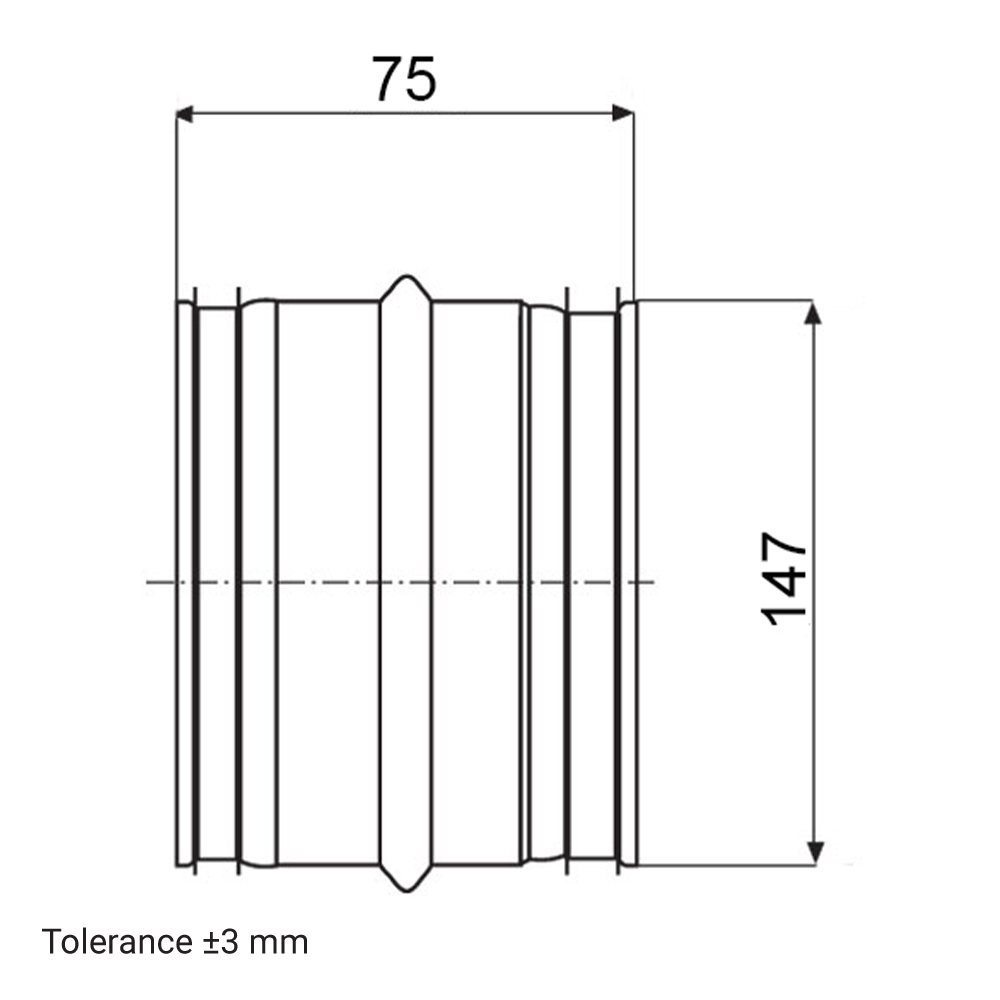

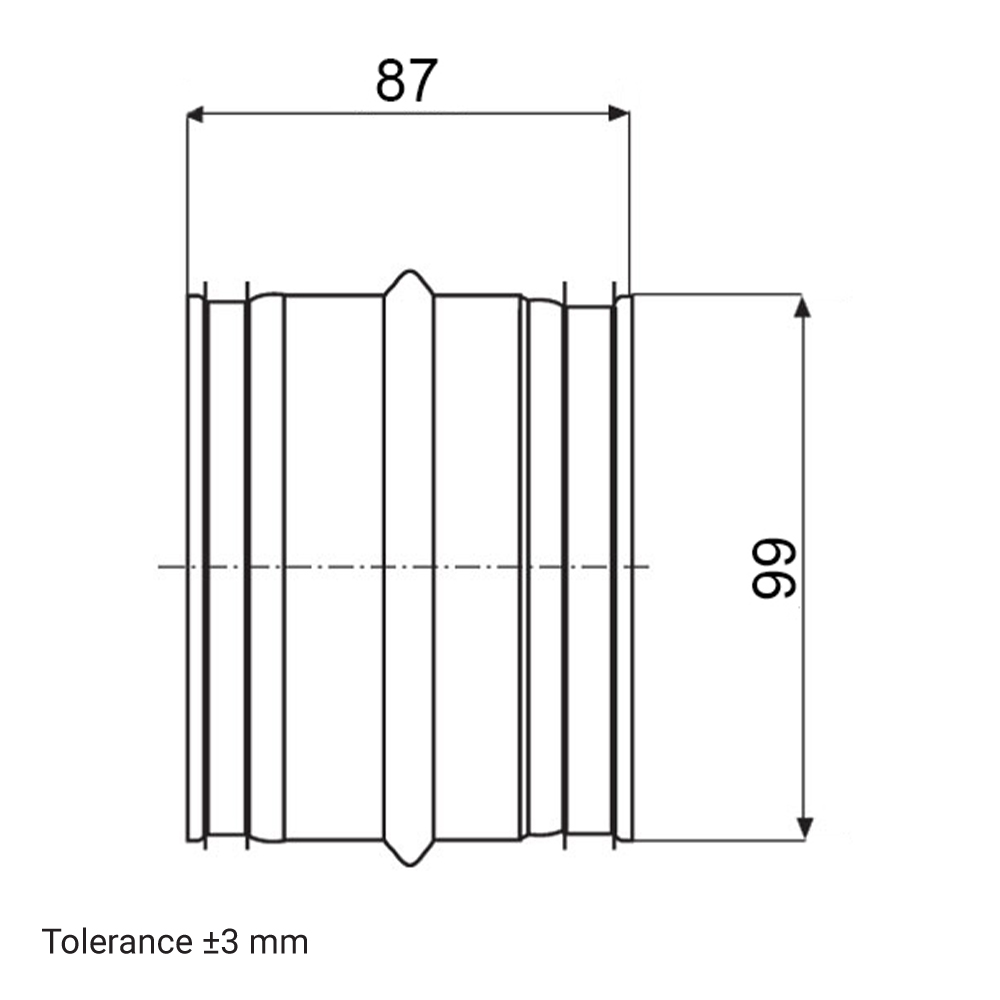

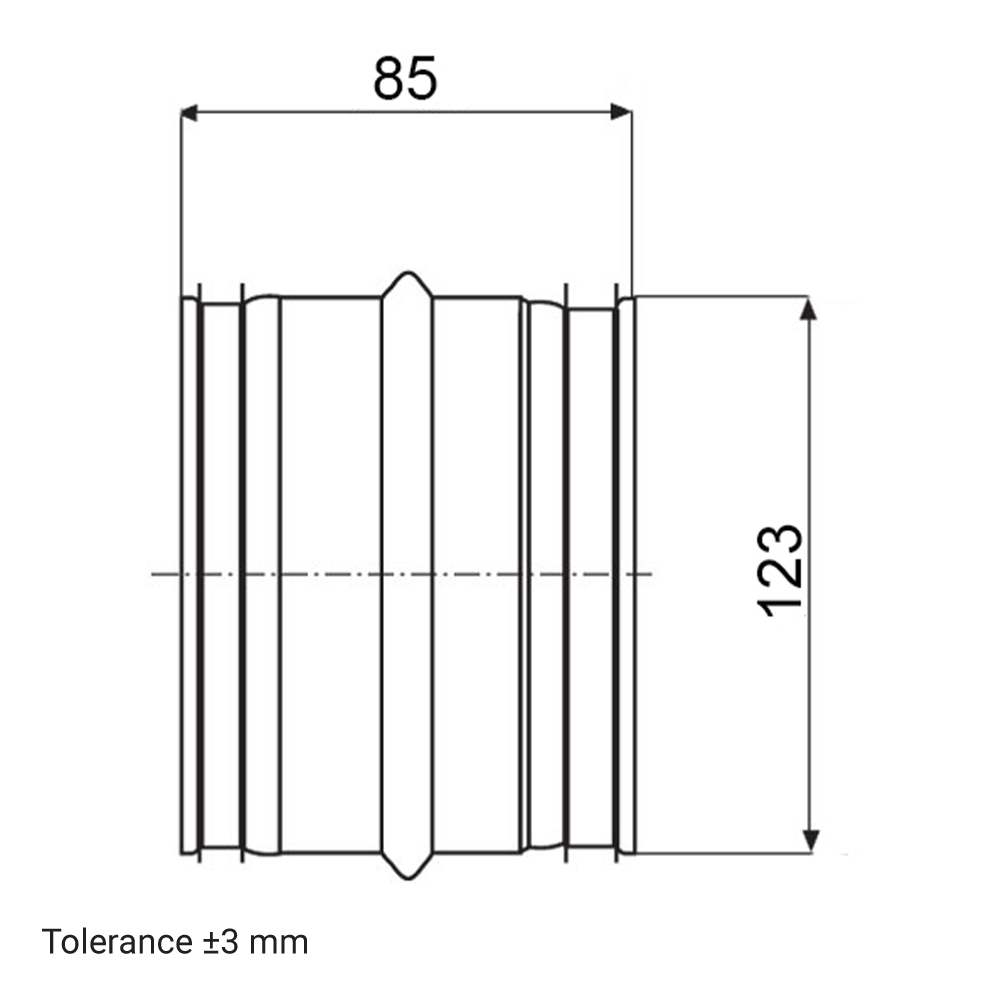

ModelDimensions (mm)
Downloads
Dalap PMI-O 080 Detail
Dalap PMI-O 100 Detail
Dalap PMI-O 125 Detail
Dalap PMI-O 150 Detail
Dalap PMI-O 160 Detail
Dalap PMI-O 200 Detail
