Dalap TMI-O - stainless steel “T” piece with sealing rubber

The Dalap TMI-O 80 stainless steel T-piece with sealing rubber is used to divide or merge air ducts in small and medium-sized spaces, such as kitchens, bathrooms, washrooms, fitness centers or offices, and thanks to its durability and long service life (AISI 304), it is also suitable for outdoor environments and environments with high humidity. Thanks to the SPIRO COMFORTCLICK system, it is easy to connect and is compatible with Dalap SPIROVENT and Dalap SPIROVENTI.
Combination name Code EAN Availability Price VAT excl. Preis VAT incl. Add to cart
Dalap TMI-O 080/080 80183I 4250622655096 3 pcs. 35.04 € 41.70 €
shopping_cart
Dalap TMI-O 100/100 80094I 4250622655034 3 pcs. 29.62 € 35.25 €
shopping_cart
Dalap TMI-O 125/125 80096I 4250622655041 2 pcs. 38.78 € 46.15 €
shopping_cart
Dalap TMI-O 150/150 80097I 4250622655058 3 pcs. 49.71 € 59.15 €
shopping_cart
Dalap TMI-O 160/160 80098I 4250622655065 8 pcs. 52.77 € 62.80 €
shopping_cart
Dalap TMI-O 200/200 80099I 4250622655072 4 pcs. 68.07 € 81.00 €
shopping_cart

The stainless steel Dalap TMI-O “T” branch with sealing rubber is used to divide or merge air ducts in small and medium-sized spaces. Thanks to its durability and long service life (AISI 304), it is also suitable for outdoor environments and environments with high humidity. This metal coupling has the innovative SPIRO COMFORTCLICK system. The T-piece can be combined with both stainless steel and conventional metal spiro components.

Advantages of the stainless steel Dalap TMI-O “T” piece

  • stainless steel 1.4301 (AISI 304) for high resistance and long service life
  • also suitable for outdoor environments and environments with high humidity
  • temperature resistance from -30 to +80 °C, without rubber seal up to +350 °C
  • SPIRO COMFORTCLICK - flanges equipped with sealing rubber ensure easy installation (you just need to insert the components into each other)
  • easy maintenance and cleaning – smooth surface prevents dirt from sticking
  • compatible with ducts and components of the same diameter

TMI-O_en

Declaration of conformity

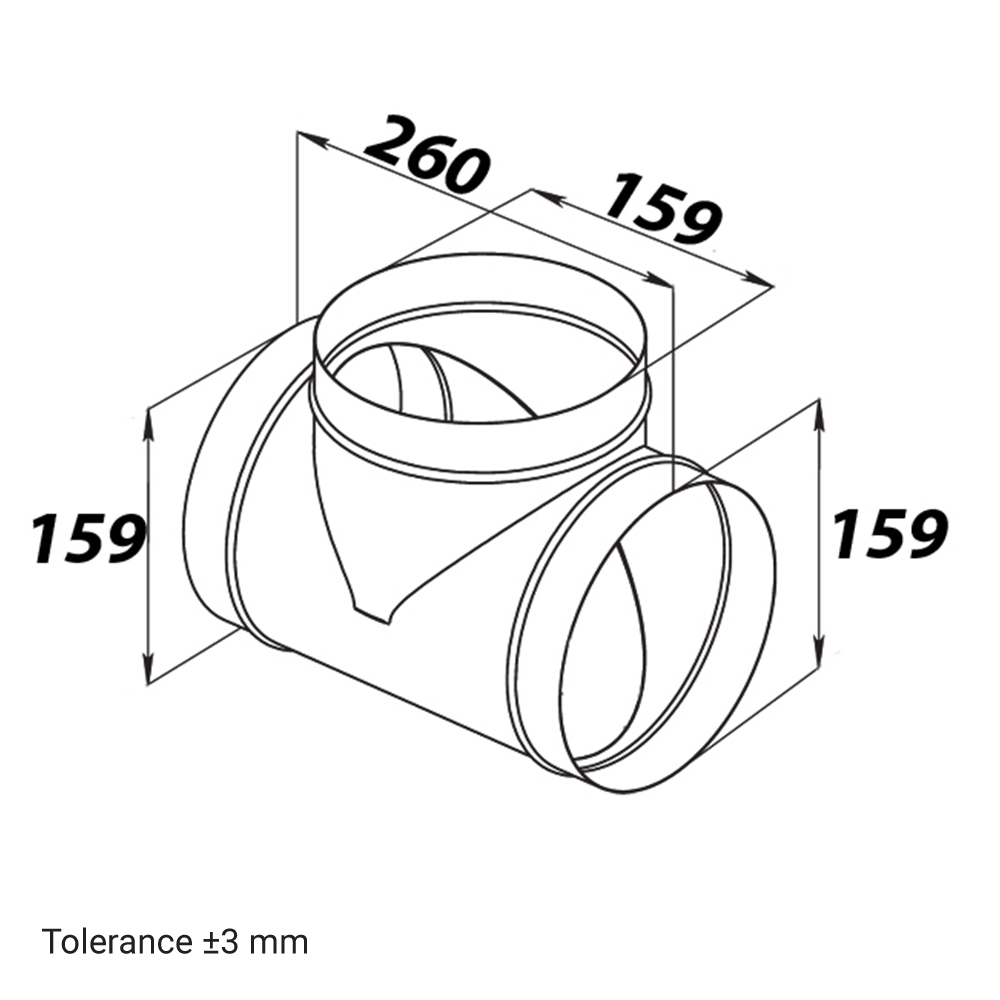

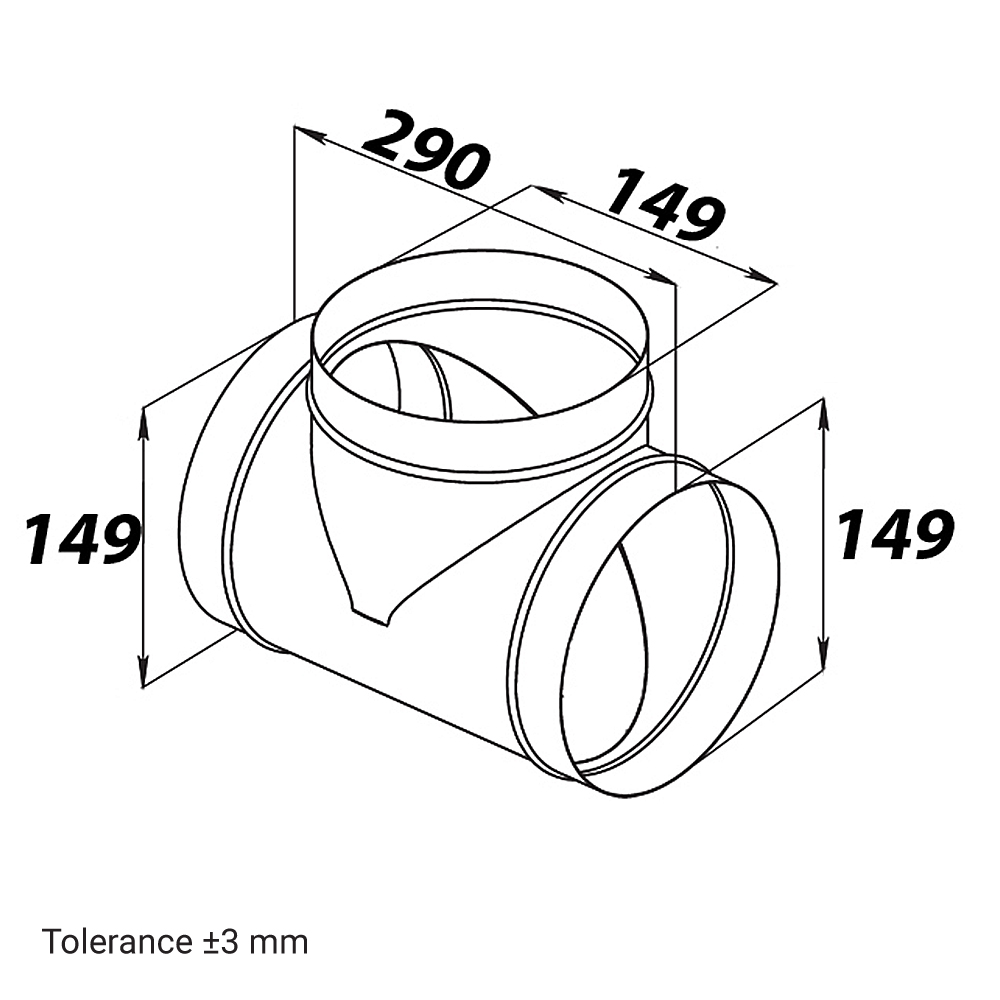

ModelDimensions (mm)
Downloads
Dalap TMI-O 080/080 Detail
Dalap TMI-O 100/100 Detail
Dalap TMI-O 125/125 Detail
Dalap TMI-O 150/150 Detail
Dalap TMI-O 160/160 Detail
Dalap TMI-O 200/200 Detail
