Dalap SPIROVENTI - fixed stainless steel duct up to 350 °C

The Dalap SPIROVENTI stainless steel air duct up to 350 °C is used for air distribution in small and medium-sized spaces, such as kitchens, bathrooms, washrooms, fitness centers or offices, and thanks to its durability and long service life (AISI 304) it is also suitable for outdoor environments and environments with high humidity. Assembly is simple, without the use of complex tools. The duct can be combined with components of a conventional spiro duct.
Combination name Code EAN Availability Price VAT excl. Preis VAT incl. Add to cart
Dalap SPIROVENTI 080/1 80177I 4250622655164 5 pcs. 22.27 € 26.50 €
shopping_cart
Dalap SPIROVENTI 100/1 90254I 4250622655102 9 pcs. 32.18 € 38.29 €
shopping_cart
Dalap SPIROVENTI 125/1 90255I 4250622655119 ON REQUEST 0.00 € 0.00 €
shopping_cart
Dalap SPIROVENTI 150/1 90256I 4250622655126 ON REQUEST 0.00 € 0.00 €
shopping_cart
Dalap SPIROVENTI 160/1 85109I 4250622655133 6 pcs. 43.87 € 52.21 €
shopping_cart
Dalap SPIROVENTI 200/1 92257I 4250622655140 1 pc. 57.48 € 68.40 €
shopping_cart

The stainless steel Dalap SPIROVENTI air duct up to 350 °C is used for air distribution in small and medium-sized spaces. Thanks to its durability and long service life (AISI 304), it is also suitable for outdoor environments and environments with high humidity. Installation is simple, without the use of complex tools. The duct can be combined with both stainless steel and conventional metal spiro components.

Advantages of the Dalap SPIROVENTI stainless steel duct

  • stainless steel 1.4301 (AISI 304) for high resistance and long service life
  • also suitable for outdoor environments and environments with high humidity
  • temperature resistance from -30 °C up to +350 °C
  • resistance up to 2000 Pa pressure
  • simple assembly – just plug the components together
  • easy maintenance and cleaning – smooth surface prevents dirt from sticking
  • compatible with ducts and components of the same diameter

SPIROVENTI_en

Declaration of conformity

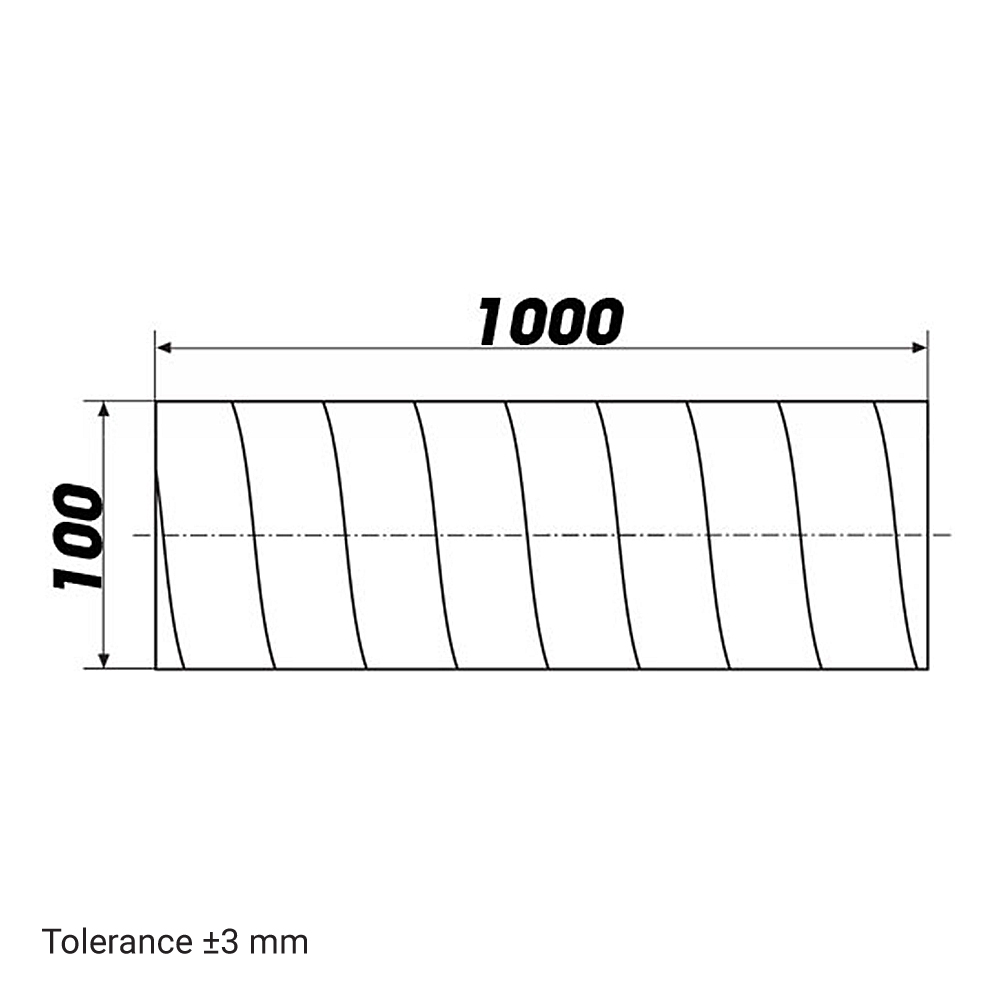

ModelDimensions (mm)
Downloads
Dalap SPIROVENTI 080/1 Detail
Dalap SPIROVENTI 100/1 Detail
Dalap SPIROVENTI 125/1 Detail
Dalap SPIROVENTI 150/1 Detail
Dalap SPIROVENTI 160/1 Detail
Dalap SPIROVENTI 200/1 Detail
